  • Automated Mastitis Test - MastiPro

MastiPro is an electronic test device that detects mastitis in cows. MastiPro can be mounted on any kind of milking machine. It works automatically when milking starts, there is no need to start the system manually. MastiPro can detect the early stage of Mastitis in the cow and gives a warning and informs you via mobile application. Very easy to install, very easy to start.

Mastitis in cows can be a difficult burden for farmers to overcome. Every year the U.S. Dairy Industry suffers over $2B in losses due to mastitis. This disease not only affects dairy farmers every year but can cause death in their cows and slow the production of milk even further.

But due to our exceptional knowledge in cow and cattle farming, MilkingCloud has developed a revolutionary Mastitis Detection System for farmers everywhere. It’s incredibly simple to use and requires no elaborate setup or electricians to configure the device.

Easy Installation

Easy Installation - No Technician Required, Operates Automatically, Compatible with all milking systems

Now with replaceable batteries, MastiPro is even easier to install. No extra power lines and no technician required. It is plug and play.

Mastitis Alerts

It detects mastitis even in early stage and subclinical mastitis cases in cows.

It tests the passing milk while milking is in progress. MastiPro alerts you when it detects signs of Mastitis in the cow. You can retest that cow with the California Mastitis Test.

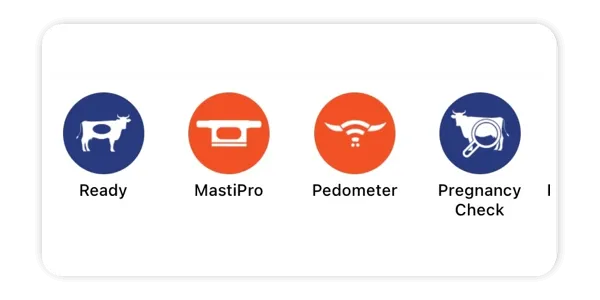

Notifications

It automatically tests milk and alerts you with lights and also with mobile notifications.

MastiPro informs not only the workers in the milking parlor, but also the veterinarian or others, even if they are not on the farm. Only one mobile device should be placed in the milking parlor.




MastiPro

vs

CMT

In-line mastitis detection system which allows farmers to constantly monitor and detect subclinical mastitis.
California Mastitis Test is a cow-side assay that evaluates the change in viscosity and used widely among farms.
Measurement Frequency
Laborsome
Sensitivity
Setup Cost
Brevity of Detection Day

How to use?


Simply attach the device to the milk tube, and it will be ready to operate right away, without needing any other connections, electrical or otherwise. Connecting the system only to the milk line is enough to put it in service.
The device automatically detects the flow of milk and starts working. There’s no need for any further procedures, like powering up the device or shutting it off once the milking process is over.

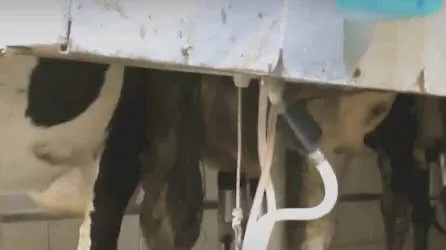

Mastitis in Dairy Cow

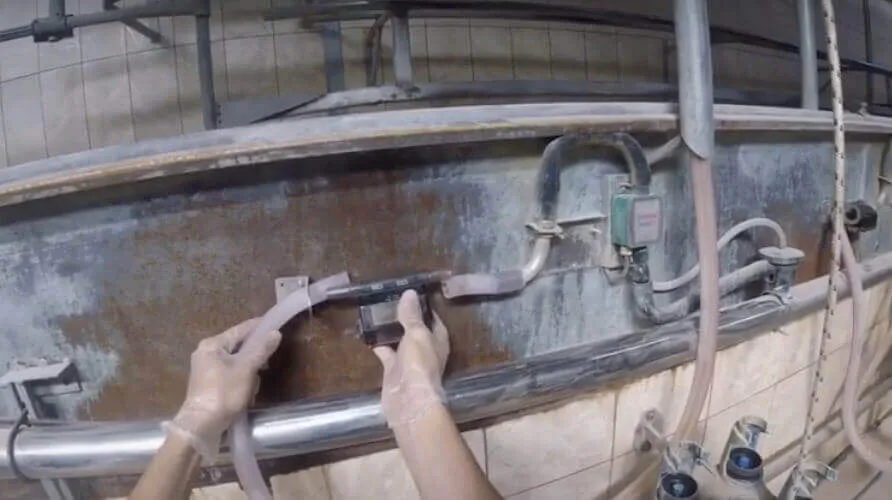

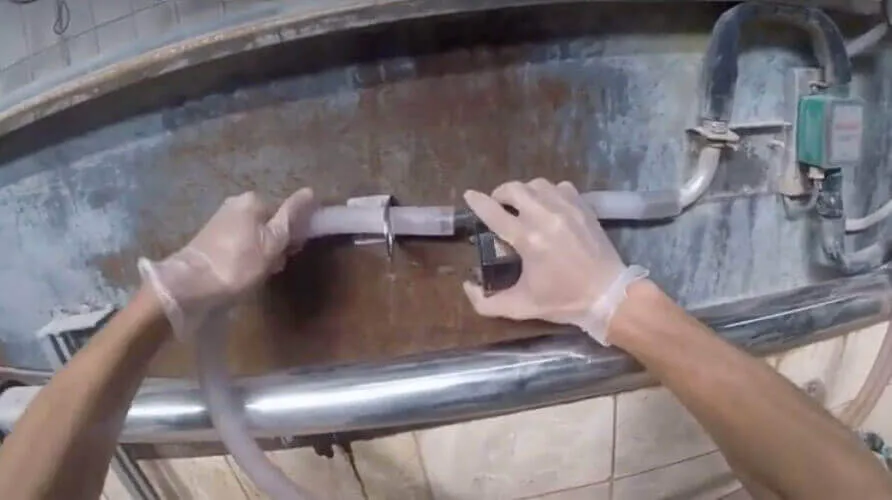

Cut the milking hose to align MastiPro.

Place MastiPro as shown in the picture above.

Use the L-shaped tool to fix the moving milking hose.

Specifications


Unit Weight
240 g (with battery)


Dimensions
15.5 x 6.0 x 6.0 cm


Battery type
C size Lithium Battery


Pipe Diameter
15mm *


Sensitivity setting
10-level selection


Measurement Unit
Single Chip CPU


Warranty
2 Years


Battery Life
5 years **


Storage Temp.
4°C to 45°C


Warning Method
3-level LED light ***


*   inner diameter of milking pipe line

**  depends on Bluetooth connection time

*** normal, suspected, mastitis
